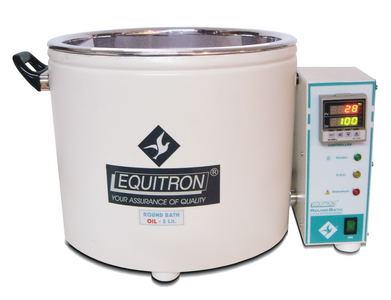

Advantages of Oil Bath Round Clear Bottom
A clear bottom. A uniquely designed Bath. Ensures no heater burn out due to lack of water.
An absolute over-temperature alarm with auto cut off.
Double walled, internal and external chamber full stainless steel construction.
A floating overshoot alarm set 5°C above set point.
Absolute over temperature alarm - audio - with auto cut off.
End cycle visual indication with heater cut off.
Applications of Round Oil Baths
Round Baths are ideal for all applications requiring, reliable and safe reactions, extraction’s, analysis and tests.
| Model |
Round Flask Capacity |
Bath size Ø x deep in mm |
Temperature Range Oil - PO |
App. Shipping Details Net / Gr. / Volume |
| #8481CBPO |
1 lit. |
Ø 165 x 90 |
300°C |
4.3 kg / 5.0 kg / 0.04 m³ |
| #8483CBPO |
3 lit. |
Ø 230 x 130 |
300°C |
7.0 kg / 8.0 kg / 0.05 m³ |
| #8485CBPO |
5 lit. |
Ø 260 x 150 |
300°C |
8.2 kg / 9.3 kg / 0.05 m³ |
| #8490CBPO |
10 lit. |
Ø 350 x 200 |
300°C |
13.0 kg / 20.0 kg / 0.10 m³ |
Constructions of Round Oil Baths
Double walled, internal and external chamber full stainless steel construction.
External Body oven baked epoxy finished.
Insulated handles on sides for easy handling.
Standard Features of Clear Round Bottom Oil Baths
Digital electronic PID controller with following parameters programmable by user:
• Temperature range: ambient up to 300°C (oil) • Time: up to 99 hours and 59 minutes.
Pt100 Sensor for precise monitoring.
A floating overshoot alarm set 5°C above set point.
Absolute over temperature alarm - audio - with auto cut off.
End cycle visual indication with heater cut off.
Industrial grade long life special heaters for efficient transfer of heat.
