Applications for Forced Convection Oven:

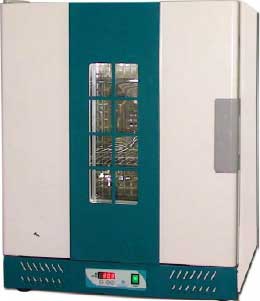

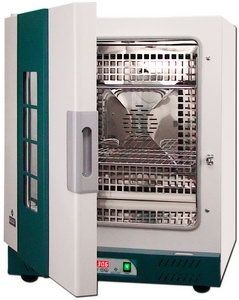

EQUITRON Forced Convection Oven is ideally
suitable for any laboratory application requiring a
controlled temperature environment upto 250ºC.
Advantages of Forced Convection Oven
Glass window in-built into the door.
Forced convection design ensures a high level of
control accuracy and uniformity.
Automatic cut off of heater & blower when door
opened.
Construction:
Electrical
Digital PID temperature controller with timer,
alarms and auto tuning.
Incoloy sheathed heater.
Non contact type door switch.
Over temperature safety protection & MCB.
Mechanical
Aero dynamic internal design for achieving
horizontal air circulation.
Solid and plain bottom without electricals.
Seamless round cornered edge of internal chamber ensures easy
cleaning & prevents any leakage.
Double layered transparent safety glass window.
Supplied with stainless steel wire mesh shelves. Shelf height
adjustable in 25mm steps.
Mineral wool insulation keeps outer casing cool.
Silicon gasket in door.
Standard Features for Forced Convection Oven
Temp range: ambient +10ºC to 250ºC.
Control accuracy: ±0.2ºC.
Uniformity: ± 2.0ºC or better.
