Advantages of Vacuum Autoclaves
It adopts European Class B standard.
With pulse pre-vacuum - essential for sterilizing all wrapped (single / double) or unwrapped items, including porous items that do not exceed the specifications of Hollow load Type A.
A pre defined program list for easy operational settings:
Reproducible sterilization cycles are accomplished through the defined programs.
Electronic control module offers microprocessor controls and LED display of operating parameters, where temperature, pressure and sterilisation time are constantly displayed.
A drying cycle helps prevent rusting of delicate instruments and helps dry clothing or absorbent materials.
Applications of Class B Autocalves
Table Top Vacuum High Speed Sterilizers are ideal for all applications requiring rapid, reliable and total destruction of all living microorganisms.
Ideal for Ophthalmic Surgeons, Dental Surgeons, Surgical Doctors, Polyclinics and Hospitals, Operation theatres, QC / Micro as a stand-by unit.
| Model |
Product |
Working Chamber Size
(Ø x D in cm / Lt) |
No. of Trays |
App. Shipping Details (Air) Net/Gr./Volume |

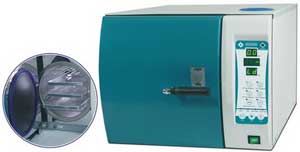

| #7471-B-22 |
Class B Autoclave |
Ø250mm x 450mm (22L approx.) |
3 |
45 kg / 72 kg / 0.35m3 |
Construction OR Standard Features of High Speed Sterilizers
Safer and more reliable door structure. A heat-insulated door with locking feature prevents opening while the chamber is under pressure to help minimize dangers to operator.
Exhaust steam is discharged to an inbuilt water collection tank thus keeping the room steam free.
| Sterilizing Temperature |
121°C or 134°C |
| Test |
Bowie & Dick test |
| Safety Features |
Pressure Release Valve and computerized diagnosing and alarm system |
| Water Supply System |
Reservoirs (2Ltr fresh water supply system and 1.6Ltr waste water reservoirs) |
| Voltage |
220V±10% 50/60Hz, Single Phase |
| Power |
2400W / 10A |
|
