Advantages for Chilled Water Circulator 4Litre
Environment friendly CFC free hermetically sealed compressor.
Sleek & compact design with easy maneuverability.
Can be placed under workbench
Applications for 4 Litre Chilled Water Circulator
Ideally suitable for chilling and condensing operations. Ideal companion for Rotary Vacuum Evaporator, Viscosity, Spectrophotometry, Water Baths upto 28 lit and for general lab requirements of chilling in closed loop systems
Model
Description
Cooling Capacity
App. Shipping Details
Net / Gr. / Volume
#8502.ROT.000

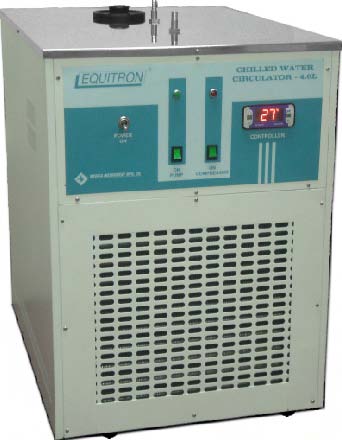

Chilled Water Circulator - 4L
700 W at 15°C
41 kg / 65 kg / 0.345 m3
Construction of Chillers
Stainless steel base & top. Panels of steel - powder coated.
Four castors for easy movement.
Supplied with 1 met x 2 Silicone tubings (8x11 mm) with insulation.
External size (L/W/D): 56 x 41 x 64 cm
Standard Features of Chilled Water Circulators
Suitable for closed loop systems.
In-built Digital Temperature Controller cum Indicator.
Temperature range upto 0ºC (at ambient conditions below 30ºC).
Cooling capacity 700 W at 15ºC.
Reservoir capacity of approximately 4 lit.
Circulation pump of app 15 LPM at zero head.
Ideally suitable for chilling and condensing operations.
Ideal companion for Blister Pack Machines, 20 lit
Rotary Vacuum Evaporators, and for general production requirements of chilling in closed loop systems.
Model
Description
Cooling Capacity
App. Shipping Details
Net / Gr. / Volume
#8502.025.000

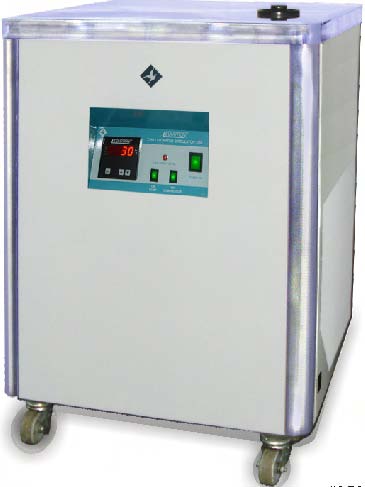

Chilled Water Circulator - 25L
2500 W at 15°C
81 kg / 110 kg / 0.58 m3
Chilled Water Circulator Constructions
Full stainless steel construction.
Sturdy angular welded frame.
Panels powder coated.
Four heavy duty castors for easy movement.
External size (L/W/D): 65 x 62 x 84 cm
Standard Features for Chilled Water Circulator
Suitable for closed loop systems.
In-built Digital Temperature Controller cum Indicator.
Temperature range upto +5ºC (at ambient 25ºC).
Reservoir capacity of approximately 25 lit.
Heavy duty water circulation pump of 180 W with 10 LPM flow rate at 15 met head.
With low liquid level indication & automatic cut-off.
