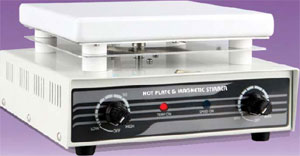

Advantages of Hot Plate Magnetic Stirrers
Space efficient design makes them ideal for use on crowded bench tops and inside of bio-hoods.
Heating and stirring can be performed simultaneously.
DC motor supports stable speed at the start and low heat emission.
Heater capacity of 550W for rapid heating.
Hot Plate Magnetic Stirrers Applications
Ideal for general heating and magnetic stirring in chemical preparations, distillation, testing, titration, biological and chemical experiments where an airtight container or high purity sample is required.
| Model |
Description |
Plate size
(L x W)mm |
Motor |
Temperature control method |
Heater |
Temp Range |
| #7861-DIG |
Hot Plate &
Magnetic Stirrer |
180 x 180 |
Feedback control |
Digital PID control |
550W |
Up to 300º C max |
| #7861-ANA |
Hot Plate &
Magnetic Stirrer |
180 x 180 |
Stepless Electronic motor |
Proportional voltage control |
550W |
Up to 300º C max |
Hot Plate Magnetic Stirrers Construction
Case is made of MS and Aluminium with heat cured epoxy coating.
Top heating plate is ceramic coated.
Hot Plate Magnetic Stirrers Standard features
#7861-ANA
Plate temperature can be effectively controlled by Proportional Voltage type controller.
High efficiency DC motor with stepless electric speed controller from 50 to 1200 rpm depending
on Viscosity of sample fluid.
#7861-DIG
Digital PID controller for precise control of plate temperature.
High efficiency DC motor with digital display and speed control from 100 to 1200 rpm depending on Viscosity of sample fluid.
