Oil Free PTFE Diaphragm Pump Variable Drive

Diaphragm Vacuum Pump, 2 mbar & 20 mbar
|
 Download Full Catalog
Advantages for PTFE - Teflon Diaphragm Vacuum Pump, 2 mbar
Built-in PID controller.
Valveless control.
Maintenance free, oil free, clean vacuum.
Stand alone unit, ready to be connected to any application for smooth control.
Absolute vacuum sensor.
Simultaneous display of set and actual vacuum.
Applications for Oil Free PTFE - Diaphragm Vacuum Pump
Oil-Free PTFE Diaphragm Variable
Drive Vacuum Pump is most suitable for efficient vacuum distillation in a laboratory.
Ideal partner for Rotary Evaporator or any other application in laboratory where controlled vacuum is a pre-requisite of the process.
| Model |
Description |
Free air Displacement |
Ultimate Vacuum |
App. Shipping Details
Net / Gr. / Volume |
| #9075.CRP.V02 |
PTFE diaphragm variable drive vacuum pump
with inbuilt Digital PID controller |
21 lit/min |
2 mbar |
13.60 kg / 16.0 kg / 0.115 m³ |
Following Trap is Part of Standard Supply |
| # 8841.CT0.202 |
Glass Vacuum Trap (cold trap type) with SS support rod & clamp for V02 / 020 models. |
5.0 kg / 6.0 kg / 0.06 m³ |
Construction of PTFE Diaphragm Vacuum Pump
Inert material of construction.
PTFE coated diaphragm.
Head & valve made of inert plastics.
Standard Features for Oil - Free Diaphragm Pump
Supplied with glass separator & mounting bracket as standard.
Ultimate Vacuum - 2 mbar.
Maximum air displacement: 21 lit/min.
Slow & steady control of vacuum with control accuracy of ± 3 mbar.
Power supply 230V , 50Hz, single phase.
In/out nozzles of Ø9.5mm

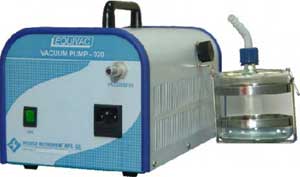

Advantages for PTFE - Teflon Diaphragm Vacuum Pump, 20 mbar
Portable and handy with carrying handle.
No lubrication - oil less.
Applications for Oil Free PTFE - Teflon Diaphragm Vacuum Pump
Oil-Free PTFE Coated Diaphragm Vacuum Pump is ideal for general laboratory use like Rotary Vacuum Evaporation, filtration, gel drying, chemical analysis etc.
| Model |
Description |
Free air Displacement |
Ultimate Vacuum |
App. Shipping Details
Net / Gr. / Volume |
| #9075.CRP.020 |
PTFE diaphragm
Vacuum pump - 020 |
22 lit/min |
20 mbar |
5.0 kg / 7.0 kg / 0.053 m3 |
Optional Accessories |
| Model |
Product / Description |
App. Shipping Details
Net / Gr. / Volume |
| #8920.DVC.MBX |
Vacuum Controller 0-1000 mbar Digital |
4.2 kg / 5.0 kg / 0.02 m³ |
| #8841.CT0.202 |
Glass Vacuum Trap (Cold trap type) with SS
support rod & clamp for V02 / 020 models |
5.0 kg / 7.0 kg / 0.06 m³ |
Teflon Diaphragm Vacuum Pump Constrcution / Standard Features
Wetted parts of inert plastics.
PTFE coated diaphragm.
Supplied with glass separator.
Equipped with retro-mounting of vapours / vacuum trap.
Continuous rated motor.
In / out nozzles of Ø9.5mm.
Notes:
Use of vapours / vacuum trap (optional) is highly recommended.
