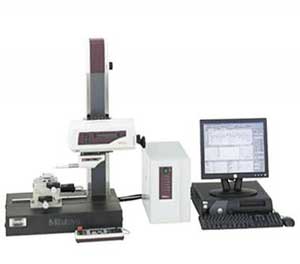

Mitutoyo Surftest SV-3200 Series 178 Surface Roughness Tester

Mitutoyo Surftest SV-3200 Series 178 Surface Roughness Tester

 FEATURES
The Surftest SV-3200 Series provide high-accuracy, high-level analysis and multi-functionality in measurement of surface roughness. Mitutoyo's Surftest SV-3200 Series provides high-accuracy, high-level analysis and multi-functionality in threedimensional analysis and measurement of fine contour, as well as the conventional type surface roughness measurement. Peripheral devices such as the auto-leveling table are available to enhance operability and to enable automatic measurement. FORMTRACEPAK V5, dedicated dataanalyzing software, is installed. This software allows data management in a consistent format, from the work site to the laboratory. Ceramic, which is known for its superb anti-abrasive property, is used as the X-axis drive unit guide. No lubrication of the guide is required. High-accuracy glass scales are built-in on X-axis (resolution: 1.97μin (0.05μm) and Z2-axis (column, resolution: 39.4μin (1μm) to ensure high-accuracy positioning. The SV-3200 series manifest high-reliability especially in the horizontal roughness parameters (S, Sm), that require highaccuracy of the X-axis travel. When equipped with high accuracy Y-axis table and 3D surface analysis software MCubeMap, this offers CNC type capabilities usually performed on Extreme series machines. Various optional detector holders such as Crank Rotary type and Manual Rotary type make this versatile for many different applications. New optional Digital Automatic Tilt (DAT) function is best suited for workpieces that are too large for leveling tables.
