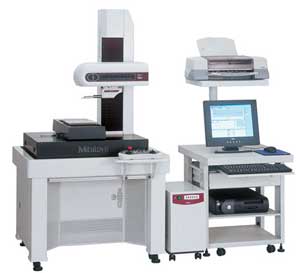

Mitutoyo Surface Measuring Instruments Surftest Extreme SV-3000CNC Series 178-CNC

Mitutoyo Surface Measuring Instruments Surftest Extreme SV-3000CNC Series 178-CNC

 FEATURES
CNC Surface roughness Tester Has greatly distributed to the improvement in productivity and efficiency High-accuracy CNC Surface Roughness Measuring Instrument that allows surface roughness measurement in both axes. Each axes has the maximum drive speed of 200 mm/s, which permits high-speed positioning that may result in a large increase in the throughput of multipleprofile/ multiple-workpiece measurement tasks. For models with the á-axis, it is possible to perform continuous measurement over horizontal and inclined surfaces by powertilting the drive unit. For models with the Y-axis table, it is possible to expand the measuring range for multiple workpieces, etc., through positioning in the Y-axis direction. Using optional rotary table q1 and q2 designed to use with the CNC models enables it to expand the CNC measurement application range. Enables inclined plane measurements through 2-axis simultaneous control in the X- and Y-axis directions. Since the detector unit incorporates an anti-collision safety device, the detector unit will automatically stop even if its main body collides with a workpiece or fixture. Supplied with an easy-to-operate Remote Box, which the user can make any movement by selecting the required axis using the two joysticks. The current axis selection is easily identified by the icon on the key top. Communication with the Data Processing/Analysis section is via USB. PC stand not included Optional isolation stand
