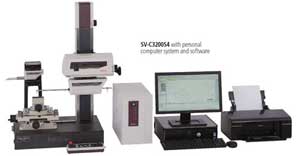

Mitutoyo Formtracer SV-C3200/SV-C4500 Series 525-Surface Roughness/Contour

 FEATURES
Dramatically increased drive speed (X axis: 3.1”/s (80 mm/s), Z2 axis column: .78”/s (20 mm/s) further reduces total measurement time. In order to maintain the traverse linearity specification for an extended period of time, Mitutoyo has adopted highly rigid ceramic guides that combine the characteristics of smallest secular change and remarkable resistance to abrasion. The drive unit (X-axis) and column (Z2- axis) are equipped with a high-accuracy linear encoder (ABS type on Z2-axis). This improves reproducibility of continuous automatic measurement of small holes in the vertical direction and repeated measurement of parts which are difficult to position.

Specifications

Model No. SV-C3200S4 SV-C3200H4 SV-C3200W4 SV-C3200S8 SV-C3200H8 SV-C3200W8 SV-C3200L4 Order No (inch) 525-491-11A 525-492-11A 525-493-11A 525-496-11A 525-497-11A 525-498-11A 525-494-11A Image - - - - - - - X1-axis measuring range 4in 100mm 4in 100mm 4in 100mm 8in 200mm 8in 200mm 8in 200mm 4in 100mm Measuring force of detector 0.75mN 0.75mN 0.75mN 0.75mN 0.75mN 0.75mN 0.75mNmN Vertical travel power column 12in 300mm 20in 500mm 20in 500mm 12in 300mm 20in 500mm 20in 500mm 27.6in 700mm Granite base size (wxd) 23.6x17.7in 600x450mm 23.6x17.7in 600x450mm 39.4x17.7in 1000x450mm 23.6x17.7in 600x450mm 23.6x17.7in 600x450mm 39.4x17.7in 1000x450mm 39.4x17.7in 1000x450mm Dimensions (main unit WxDxH) 39.6x22.6x38.0in (996x575x966mm) 39.2x22.6x46.3in (996x575x1176mm) 55.4x22.6x46.3in (1396x575x1176mm) 39.6x22.6x38.0in (996x575x966mm) 39.2x22.6x46.3in (996x575x1176mm) 55.4x22.6x46.3in (1396x575x1176mm) 45.5 x 19.0 x 56.5" (1156 x 482 x 1436mm) Mass(main unit) 308lbs 140kg 330lbs 150kg 485lbs 220kg 308lbs 140kg 330lbs 150kg 485lbs 220kg 595lbs 270kg Model No. SV-C3200L8 SV-C4500S4 SV-C4500H4 SV-C4500W4 SV-C4500S8 SV-C4500H8 SV-C4500W8 Order No (inch) 525-499-11A 525-451-11A 525-452-11A 525-453-11A 525-456-11A 525-457-11A 525-458-11A Image - - - - - - X1-axis measuring range 4in 100mm 4in 100mm 4in 100mm 4in 100mm 8in 200mm 8in 200mm 8in 200mm Measuring force of detector 0.75mNmN 0.75mN 0.75mN 0.75mN 0.75mNmN 0.75mN 0.75mN Vertical travel power column 27.6in 700mm 12in 300mm 20in 500mm 20in 500mm 12in 300mm 20in 500mm 20in 500mm Granite base size (wxd) 39.4x17.7in 1000x450mm 23.6x17.7in 600x450mm 23.6x17.7in 600x450mm 39.4x17.7in 1000x450mm 23.6x17.7in 600x450mm 23.6x17.7in 600x450mm 39.4x17.7in 1000x450mm Dimensions (main unit WxDxH) 45.5 x 19.0 x 56.5" (1156 x 482 x 1436mm) 39.6x22.6x38.0in (996x575x966mm) 39.2x22.6x46.3in (996x575x1176mm) 55.4x22.6x46.3in (1396x575x1176mm) 39.6x22.6x38in (1006x575x966mm) 39.2x22.6x46.3in (996x575x1176mm) 55.4x22.6x46.3in (1396x575x1176mm) Mass(main unit) 595lbs 270kg 308lbs 140kg 330lbs 150kg 485lbs 220kg 308lbs 140kg 330lbs 150kg 485lbs 220kg Model No. SV-C4500L4 SV-C4500L8 Order No (inch) 525-454-11A 525-459-11A Image - - X1-axis measuring range 4in 100mm 4in 100mm Measuring force of detector 0.75mNmN 0.75mNmN Vertical travel power column 27.6in 700mm 27.6in 700mm Granite base size (wxd) 39.4x17.7in 1000x450mm 39.4x17.7in 1000x450mm Dimensions (main unit WxDxH) 45.5 x 19.0 x 56.5" (1156 x 482 x 1436mm) 45.5 x 19.0 x 56.5" (1156 x 482 x 1436mm) Mass(main unit) 595lbs 270kg 595lbs 270kg

Being an Largest Importers of Mitutoyo Products in India since 2005. Mitutoyo products are mostly & widely used for everyday in various Industries, Reaserach and Developments,Manufacturing Companies, Universities and for Research applications. Over a long period of time DFT Tech have been established as reliable Suppliers ,Importers and Stockists of Mitutoyo All Range of Products in India, catering to the huge industry markets in Chennai, Kanpur, Bangalore, Coimbatore, Tiruchy, Madurai, Pune, Hyderabad, Ahemdabad, Kolkatta, Guindy, Mysore Jaipur, Vizag, and etc...

Apart from that we are supplying our Mitutoyo products in India through dealers network, catering to a variety of customers ranging from Atomic energy, Defence Installations, Research Laboratories, Educational Institutes and various Research and Development laboratories of leading national and multinational companies.

We DFT Tech, Mitutoyo Formtracer SV-C3200 / SV-C4500 Series 525-Surface Roughness / Contour Authorized Distributors, Importers, Stockists, Dealers and Suppliers of Mitutoyo Formtracer SV-C3200 / SV-C4500 Series 525-Surface Roughness / Contour Products in Chennai, Bangalore, and etc..
