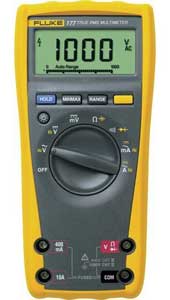

Fluke 177 True-RMS Digital Multimeter
Fluke 177 True-RMS Digital Multimeter
Fluke 177 True-RMS Digital Multimeter
True-RMS digital multimeter with the features professional
technicians prefer
Increases productivity with manual and automatic ranging,
Display Hold, Auto Hold, and Min/Max-average recording
Measures AC and DC voltage to 1000 V
Delivers accurate True-RMS AC current and voltage plus frequency,
capacitance, resistance, continuity and diode measurements
Safety rated CAT III 1000 V, CAT IV 600
| Specifications | ||
| Voltage DC | Accuracy1 | ±(0.09% + 2) |
| Max. resolution | 0.1 mV | |
| Maximum | 1000 V | |
| Voltage AC | Accuracy1 | ±(1.0% + 3) |
| Max. resolution | 0.1 mV | |
| Maximum | 1000 V | |
| Current DC | Accuracy1 | ±(1.0% + 3) |
| Max. resolution | 0.01 mA | |
| Maximum | 10 A | |
| Current AC | Accuracy1 | ±(1.5% + 3) |
| Max. resolution | 0.01 mA | |
| Maximum | 10 A | |
| Resistance | Accuracy1 | ±(0.9% + 1) |
| Max. resolution | 0.1 Ω | |
| Maximum | 50 MΩ | |
| Capacitance | Accuracy1 | ±(1.2% + 2) |
| Max. resolution | 1 nF | |
| Maximum | 10,000 µF | |
| Frequency | Accuracy1 | ±(0.1% + 1) |
| Max. resolution | 0.01 Hz | |
| Maximum | 100 kHz | |
| 1. Accuracies are best accuracies for each function | ||
| Environmental Specifications | ||
| Operating temperature | -10°C to +50°C | |
| Storage temperature | -30°C to +60°C | |
| Humidity (without condensation) | 0% – 90% (0°C – 35°C) 0% – 70% (35°C – 50°C) | |
| Safety Specifications | ||
| Overvoltage category | EN 61010–1 to 1000 V CAT III EN 61010–1 to 600 V CAT IV | |
| Agency approvals | UL, CSA, TÜV listed and VDE Pending | |
| Mechanical and General Specifications | ||
| Size | 43 x 90 x 185 mm | |
| Weight | 420 g | |
| Warranty | Lifetime | |
| Battery life | Alkaline ~200 hours typical, without backlight | |
Parts of Digital Multimeter DMM
A multimeter is has three parts:
Display
Selection Knob
Ports
The display usually has four digits and the ability to display a negative sign. A few multimeters have illuminated displays for better viewing in low light situations.
The selection knob allows the user to set the multimeter to read different things such as milliamps (mA) of current, voltage (V) and resistance (Ω).
Two probes are plugged into two of the ports on the front of the unit. COM stands for common and is almost always connected to Ground or ‘-’ of a circuit.
The COM probe is conventionally black but there is no difference between the red probe and black probe other than color. 10A is the special port used when measuring large currents (greater than 200mA).
mAVΩ is the port that the red probe is conventionally plugged in to. This port allows the measurement of current (up to 200mA), voltage (V), and resistance (Ω).
The probes have a banana type connector on the end that plugs into the multimeter. Any probe with a banana plug will work with this meter. This allows for different types of probes to be used.
