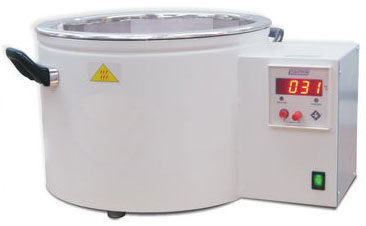

Digital Round Water / Oil Bath Immersion Series
Digital Round Water / Oil Bath Immersion Series
Advantages of Double Walled Round Immersion Oil Baths
Double walled construction with efficient insulation system.
Bath chamber of stainless steel.
Stainless Steel immersion heater - peripheral shape to eliminate direct contact with flask - even if flask touches the bottom.
Digital Range: Ambient +10 to 250°C.
Applications of Immersion oil Baths:
Round Baths - with Digital control are ideal for reactions, extractions, analysis and tests.
| Model | Round Flask Capacity | Bath size Ø x deep in mm | Temperature Range Water cum Oil - DWO | App. Shipping Details Net / Gr. / Volume |
| #8481ISDWO | 1 lit. | Ø 165 x 90 | Ambient + 10°C to 250°C | 3 3.5 kg / 4.0 kg / 0.020 m³ |
| #8483ISDWO | 3 lit. | Ø 230 x 130 | Ambient + 10°C to 250°C | 3 5.0 kg / 6.0 kg / 0.025m³ |
| #8485ISDWO | 5 lit. | Ø 260 x 150 | Ambient + 10°C to 250°C | 7.0 kg / 8.0 kg / 0.030m³ |
| #8490ISDWO | 10 lit. | Ø 350 x 200 | Ambient + 10°C to 250°C | 15.0 kg / 17.0 kg / 0.06m³ |
