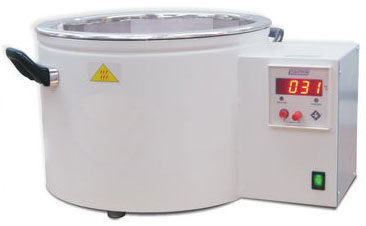

Digital Round Water / Oil Bath Immersion Series

Digital Round Water / Oil Bath Immersion Series


Advantages of Double Walled Round Immersion Oil Baths


Double walled construction with efficient insulation system.
Bath chamber of stainless steel.
Stainless Steel immersion heater - peripheral shape to eliminate direct contact with flask - even if flask touches the bottom.
Digital Range: Ambient +10 to 250°C.

Applications of Immersion oil Baths:

Round Baths - with Digital control are ideal for reactions, extractions, analysis and tests.

Model Round Flask Capacity Bath size Ø x deep in mm Temperature Range Water cum Oil - DWO App. Shipping Details Net / Gr. / Volume
#8481ISDWO 1 lit. Ø 165 x 90 Ambient + 10°C to 250°C 3 3.5 kg / 4.0 kg / 0.020 m³
#8483ISDWO 3 lit. Ø 230 x 130 Ambient + 10°C to 250°C 3 5.0 kg / 6.0 kg / 0.025m³
#8485ISDWO 5 lit. Ø 260 x 150 Ambient + 10°C to 250°C 7.0 kg / 8.0 kg / 0.030m³
#8490ISDWO 10 lit. Ø 350 x 200 Ambient + 10°C to 250°C 15.0 kg / 17.0 kg / 0.06m³
